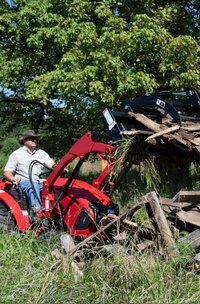

TYM Tractors TL25 Front-End Loader

Listing image Listing image Listing image Listing image
Specifications

Model TL25 Category Name Lawn / Garden Year 2025
Sale Type New Manufacturer TYM Tractors Odometer km
Lift Height 87.2 in. / 2215 mm Lift Capacity 1380 lb / 626 kgf Bucket Capacity 6.7 cu. ft / 0.19 cu. m
Price Contact for price CAD
Description
TL25
Front-End Loader
Enhance the functionality of your T25 sub-compact tractor with TL25. With its impressive lift capacity and height, the TL25 front-end loader can help you handle heavier loads of materials.
Engineered to deliver impressive performance with its enhanced dig depth and maximum rollback angle, the TL25 front-end loader lends extra functionality to the T25 sub-compact tractor. Perform intense tasks without losing stability with TL25’s impressive lift capacity and breakout force. Built with self-levelling features installed, the TL25 front-end loader can help you focus on the work and improve your productivity.
CAPACITIES & REACH
Lift_height
87.2 in. (2215 mm)
Digging_depth
4.0 in. (102 mm)
Lift_capacity
1380 lb (626 kgf)
Self_leveling
NA
Bucket_capacity
6.7 cu. ft (0.19 cu. m)
Max._dump_angle
50°
Max._rollback_angle
30°
Reach_with_bucket_on_ground
57.7 in. (1465 mm)
Clearance_with_bucket_dumped
65.3 in. (1658 mm)
Reach_at_maximum_lift_height
23.7 in. (601 mm)
Max._lift_height_under_level_bucket
81.3 in. (2065 mm)
Bucket_rollback_force_at_ground_line
1596 lb (724 kgf)
Relief_valve_setting_(Loader_control_valve)
2276 psi (160 kg/sq. cm)
Breakout_force_at_ground_level,_pivot_points
2059 lb (934 kgf)
DIMENSIONS & WEIGHTS
Lift_cylinder
1.77x1.18 in. (45x30 mm)
Bucket_cylinder
1.97x1.18 in. (50x30 mm)
Height_of_Attachment
19.1 in. (484 mm)
Weight_of_bucket_(3)
176.4 lb (80 kg)
Loader_total_weight_(1+2+3)
680 lb (308 kg)
Weight_of_mounting_frame_(2)
138.9 lb (63 kg)
Overall_height_in_carry_position
46.5 in. (1180 mm)
Attachment_used_for_specification
59 in. (1492 mm)
Length_of_Attachment_(to_pivot_point)
24.6 in. (626 mm)
Weight_of_boom_&_quick_attach_mechanism_(1)
363.8 lb (165 kg)
Depth_of_Attachment_(to_the_back_of_the_inner_shell)
18.4 in. (467 mm)
CYCLE TIMES
Boom_raising_time
4.1 sec
Boom_lowering_time
2.3 sec
Bucket_dumping_time
4.1 sec
Bucket_rollback_time
2.6 sec
